Nihon Shinkan (Thailand) Co., Ltd.
Japanese high-precision drawn aluminum pipe & bar manufacturer in Thailand

Products



Alloy of Possible Manufacturing

Aluminum: 6063, 6061, 3003

※Purchase to Extrusion Maker in Thailand



Size of Possible Manufacturing

  Pipe Bar
OD Φ12~120 Φ12~30
T t1~15 -
L L50~4000 L50~3000



Product Application



OA Field=Copy Machine

OPC Drum

Magnet Roller



Developing Roller

Mitsuya-Kan

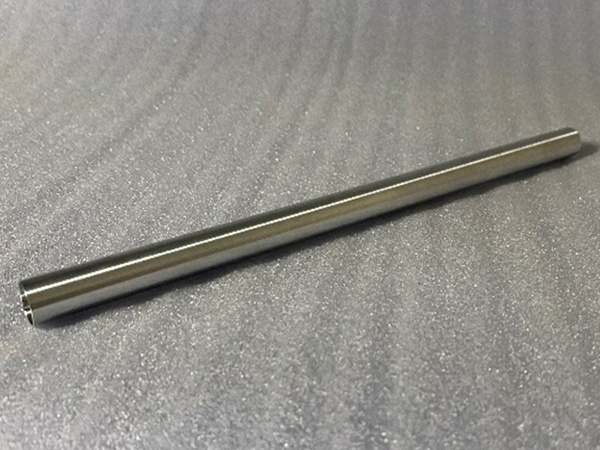

OPC Drum (for Lathing)

●Alloy:

6063 for OPC Dram

●Process:

Drawing→Chamfering
(possible "Inro" also)

●Size:

Φ20~Φ60

●Tolerance:

±0.02mm

●Roundness:

0.03mm

●Run-Out:

0.05mm

Developing Roller (for Non-Magnetic)

●Alloy:

6063

●Process:

Drawing→Both Side Inro→Centerless Grinding

●Size:

Φ10~Φ24

●Tolerance:

±0.005mm

●Roundness:

0.01mm

●Run-Out:

0.01mm

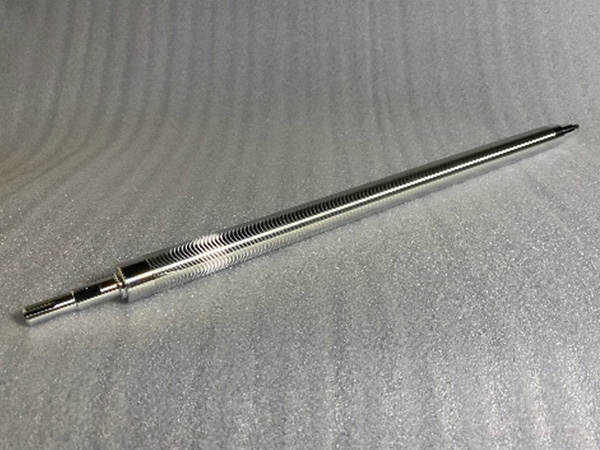

Magnet Roller

●Alloy:

6063

●Process:

Drawing→Both Side Inro→Centerless Grinding→Grooving→Assembly

●Size:

Φ16~Φ20

●Tolerance:

±0.005mm

●Roundness:

0.005mm

●Run-Out after Assy:

0.015mm

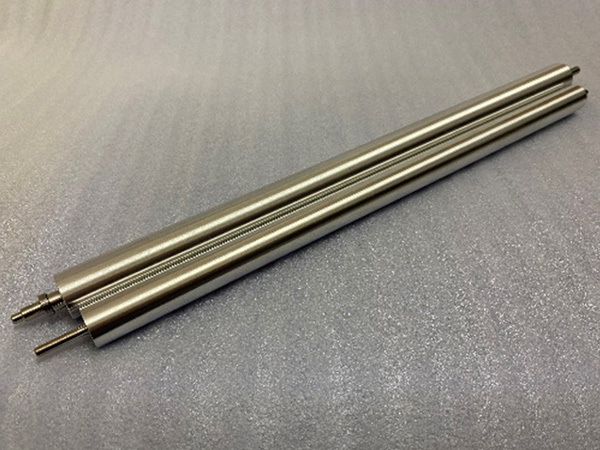

Mitsuya-Kan (Transport Roller)

●Alloy:

6063

●Process:

Cutting→Both Side Inro→Centerless Grinding→Insert Assembly

●Size:

Φ16~Φ25

●Tolerance:

±0.03mm

●Roundness:

0.03mm

●Run-Out after Assy:

0.08mm

▲PAGE TOP

Automotive, Motorcycle Field

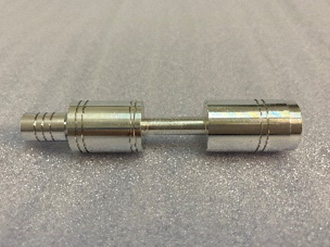

Spool Valve

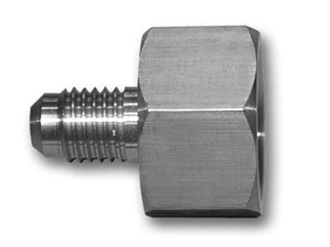

Union Parts

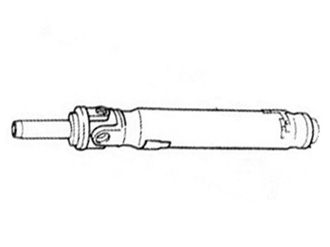

Propeller Shaft

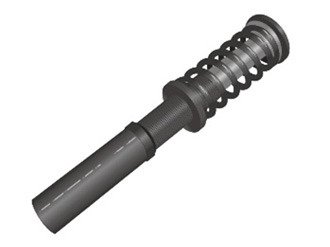

Suspension

Front Folk

Cercle Bar & Hexagon Bar for Lathe Turning

●Alloy:

6061, 6063 etc.

●Process:

Drawing→Cutting→Heating

●Size:

Φ12~Φ30

●Tolerance:

±0.025mm

●Run-Out:

1.0/1000mm

*Good Inside Quality Using Material Extruison.

*Accracy OD 0.02 Below, Easy using for CNC Lathing.

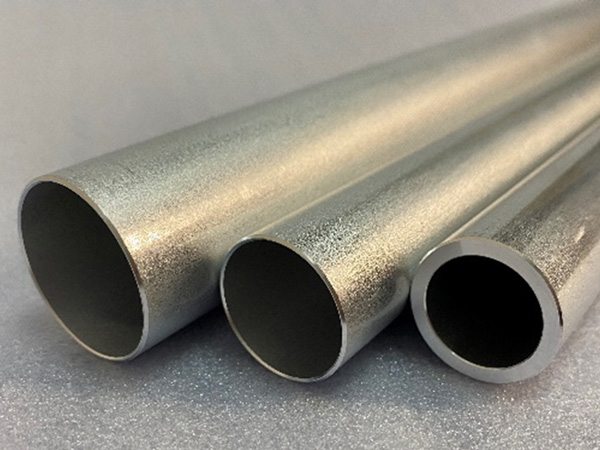

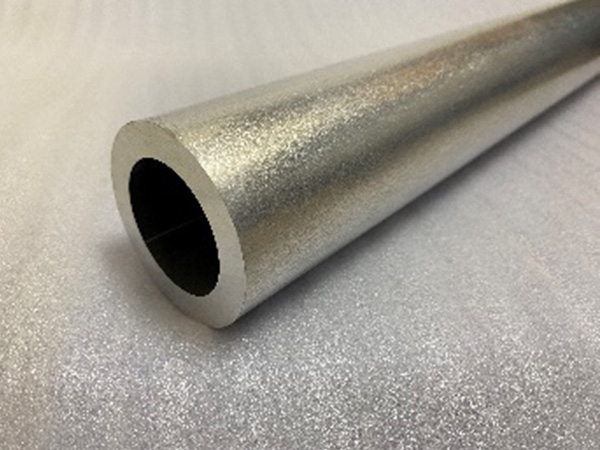

Big Size Drawing Pipe

●Alloy:

6061, 6063 etc.

●Process:

Drawing→Cutting→Heating

●Size:

OD Φ40~Φ120 T t3~8

*Only We Can Manufacture Drawing Pipe OD50Up in Thailand.

●Tolerance:

±0.05mm

●Run-Out:

0.5/1000mm

●Roughness:

Ra0.8

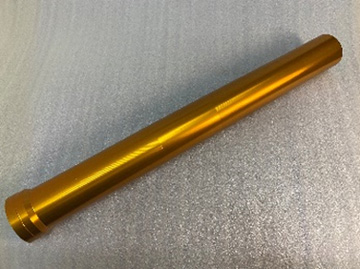

Drawing Pipe for Outer Tube of Front Folk

●Alloy:

6061

●Process:

Drawing→Cutting→Heating

●Size:

OD Φ40~Φ60 T t5~t10

●Tolerance:

±0.05mm

●Inside Roughness:

Ra0.6

*Realize Cost Reduction due Using Port-Hole Extrusion Pipe



▲PAGE TOP

Agricultural Equipment Field

Shaft

Handle

Shaft, Handle for Grass Cutter

●Alloy:

6061, 6063 etc.

●Process:

Drawing→Cutting→Heating→Punching, Bending→Anodizing(Out-Sourcing)

●Size:

OD Φ20~Φ30 T t1.0~t2.0

*Possible Insert Bush to Inside Pipe also.

▲PAGE TOP

Latest Update 24 Jan 2024
