Steel cutting rule

Steel cutting rule use not only paper and corrugated board but also recycle product, food tray and film sheet.

We producing appropriate steel cutting rule as following needs of the times aggressively.

Please feel free to contact with us.

Tignite Plus　- Cutting edge like mirror process -

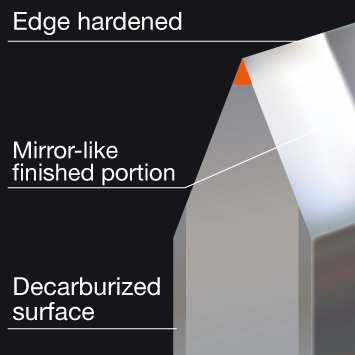

Plus Type is our original product processed by grinding. A sharp cutting edge like mirror processed decreases cutting force. It is effective for smooth and fine cutting plane and preventing tearing off and peeling of printed papers.

Body hardness	HV345 (48)	HV380 (52)
Edge hardness	HV620 (76)	HV650 (78)
Height	23.8mm
Thickness	0.71mm (2pt)
Bevel type	CB (30° or 42° or 52°)
Applications	REDUCE ANGEL HAIR (DUST), CARD BOARD, LAMINATED CARD BOARD, LAMINATED CIGARETTE CASE, PARER CONTAINER, GREETING CARDS, PE,PVC,PP, PET, PROTECT FILM
Mirror

Tignite S/SP

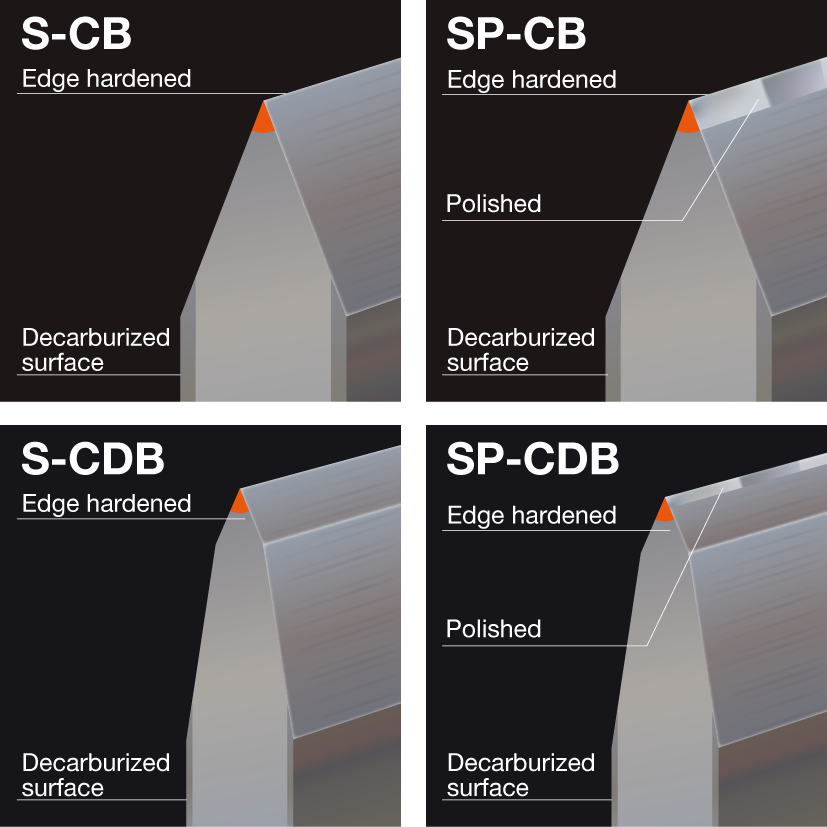

S Type is our standard shaved cutting blade for global markets. We have center bevel and center double bevel blades with angle 42°and 52°for high speed press and durability. SP Type is also a shaved blade improving its cutting performance by adding special process to S Type blade.

Body hardness	HV345 (48)	HV380 (52)
Edge hardness	HV620 (76)	HV650 (78)
Height	23.8mm
Thickness	0.71mm (2pt) / 1.05mm(3pt)
Bevel type	CB (42° or 52°) / CDB (42° or 52°)
Applications(S)	CARD BOARD, SMALL LOT CARD BOARD CIGARETTE, PARER CONTAINER, THIN CORRUGATED BOARD
Applications(SP)	CARD BOARD, LAMINATED CARD BOARD, SMALL LOT CARD BOARD CIGARETTE, LAMINATED CIGARETTE CASE, PARER CONTAINER, THIN CORRUGATED BOARD

Shaved

Polished

Tignite WS/WSP

We recognize that the WS type is double bevel and the profile of first bevel is chosen so as to suit pressing force, the durability is significantly
improved to provide an optimal wear status for the edge without degrading the sharpness.

WSP also has same ability with WS but for this edge, making it possible to prevent dust particulates from being produced from the paper board.

Body hardness	HV345 (48)	HV380 (52)
Edge hardness	HV620 (76)	HV650 (78)
Height	23.8mm
Thickness	0.71mm (2pt) / 1.05mm (3pt)
Bevel type	CB(50°1st / 42°2nd or 60°1st / 52°2nd) CDB(50°1st / 42°2nd / 7° or 60°1st / 52°2nd / 7°)
Applications(WS)	INCREASED DIE LIFE TIME, CARD BOARD, SMALL LOT CARD BOARD CIGARETTE, PARER CONTAINER, THIN CORRUGATED BOARD
Applications(WSP)	INCREASED DIE LIFE TIME, CARD BOARD, LAMINATED CARD BOARD, SMALL LOT CARD BOARD CIGARETTE, LAMINATED CIGARETTE CASE, PARER CONTAINER, THIN CORRUGATED BOARD

Shaved

Polished

Tignite M

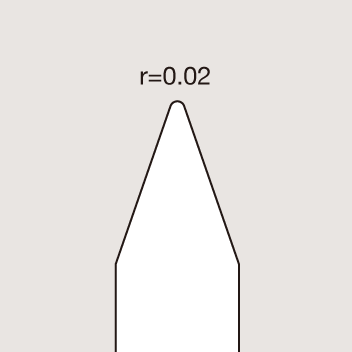

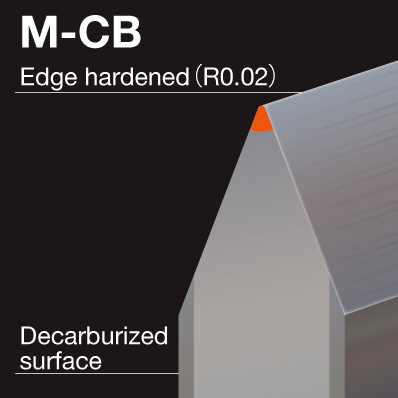

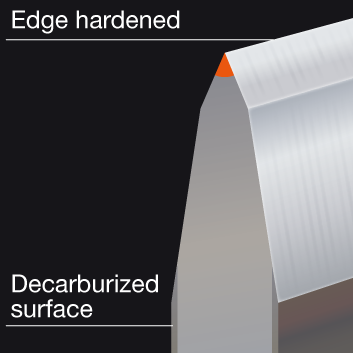

The M type has an edge profile of 0.02R. Since the hardness is chosen so as to suit the pressing force, the durability is significantly improved to make the M type rules best suited to cut paper board in large batches.

Attention : Not supported in some areas. Please contact us.

Body hardness	HV345 (48)		HV380 (52)
Edge hardness	HV600 (74)	HV620 (76)	HV650 (78)	HV670 (80)
Height	23.8mm
Thickness	0.71mm (2pt) / 1.05mm (3pt)
Bevel type	CB (42° or 52°)
Applications	INCREASED DIE LIFE TIME, CARD BOARD, LAMINATED CARD BOARD, LAMINATED CIGARETTE CASE, PARER CONTAINER

Shaved

Tignite R/RF

The term "R" stands for Fine grinding processed.

This type of cutting blade is suitable to die cut laminated materials.

It is recommended when paper dust is a problem.

Body hardness	HV345 (48)	HV380 (52)	HV450 (60)
Edge hardness	HV620 (76)	HV650 (78)	HV670 (80)
Height	23.8mm
Thickness	0.71mm (2pt) / 1.05mm (3pt)
Bevel type	CB (42° or 52°) CDB (42° or 52°)First bevel is ground, Second bevel is shaved
Applications(R)	REDUCE ANGEL HAIR(DUST), CARD BOARD, LAMINATED CARD BOARD, LAMINATED CIGARETTE CASE, PARER CONTAINER, GREETING CARDS, THICK CORRUGATED BOARD, PE,PVC,PP, PET, VACUUM FORMING, PROTECT FILM, GASKETS
Applications(RF)	REDUCE ANGEL HAIR(DUST), CARD BOARD, LAMINATED CARD BOARD, LAMINATED CIGARETTE CASE, PARER CONTAINER, GREETING CARDS, VACUUM FORMING, GASKETS

Ground

Shaved

Tignite CW

CW type, center double bevel, is especially designed for the Asian markets.

This type features 42 degree bevel angle with acute angle second bevel which reduces cut resistance, maintaining the same cutting force as that of center bevel blades.

It is used for cutting hard materials such as paperboards and partitions.

Body hardness	HV450
Edge hardness	HV670
Height	23.8mm
Thickness	0.71mm (2pt)
Bevel type	CDB (42°)
Applications	REDUCE ANGEL HAIR(DUST), CARD BOARD, LAMINATED CARD BOARD, LAMINATED CIGARETTE CASE, PARER CONTAINER, GREETING CARDS, VACUUM FORMING, GASKETS

Ground

CUTTING LOAD

Product		PVC (N)
S	42°	～330
	52°	～430
SP	42°	～230
	52°	～330
WS	52°	～430
WSP	52°	～330
M	52°	～850
R	42°	～80
PLUS	42°	～80

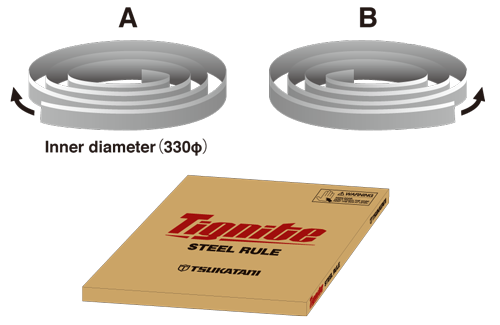

Packaging

COIL	STRAIGHT

Conversion tables

Hardness
HV	HRC	HS
340	34.4	47
345	35.0	48
350	35.5	-
360	36.6	50
370	37.7	-
380	38.8	52
390	39.8	-
400	40.8	55
410	41.8	-
420	42.7	57
430	43.6	-
440	44.5	59
450	45.3	-
460	46.1	62
470	46.9	-
480	47.7	64
490	48.4	-
500	49.1	66
510	49.8	-

Hardness
HV	HRC	HS
520	50.5	67
530	51.1	-
540	51.7	69
550	52.3	70
560	53.0	71
570	53.6	-
580	54.1	72
590	54.7	-
600	55.2	74
610	55.7	-
620	56.3	76
630	56.8	-
640	57.3	77
650	57.8	78
660	58.3	79
670	58.8	80
690	59.7	-
700	60.1	82
720	61.0	83

Applications

Applications		Available models in Thailand
		Shaved					Ground
		S	SP	WS	WSP	M	R	RF	CW	Plus
Advantages	REDUCE ANGEL HAIR (DUST)
Advantages	INCREASED DIE LIFE TIME
Applications	CARD BOARD
	LAMINATED CARD BOARD
	SMALL LOT CARD BOARD CIGARETTE
	LAMINATED CIGARETTE CASE
	PAPER CONTAINER
	GREETING CARDS
	THIN CORRUGATED BOARD
	THICK CORRUGATED BOARD
Plastic	PE, PVC, PP
	PET
	VACUUM FORMING
Electronics	PROTECT FILM
Electronics	GASKETS
