Manufacture and Sale of Steel cutting rule
Press Machine Products

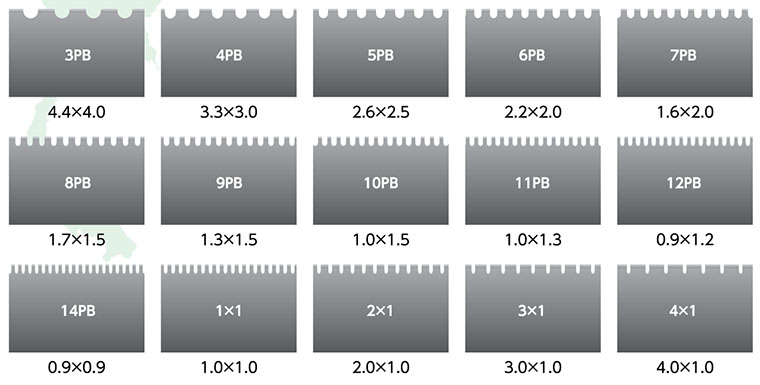

Perforation Rule (Actual Size: Thickness 0.71 mm) |
|
The perforation rule is used for cutting the cutouts used on invoices, waybills, tissue boxes, etc. |
| Thickness | Blade Height | Cut | Uncut | Uncut Depth (1.5pt & 2pt) |
Uncut Depth (3pt) |
1.5pt ~ 3pt (0.53mm) (1.05mm) |
23.80mm | 1mm ~ 5mm | 0.8mm ~ 5mm | 2.5mm | 5.0mm |
• The standard length is 1000mm.
• To be able to make the edge hardened products and coil products.

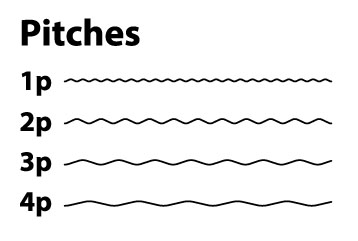

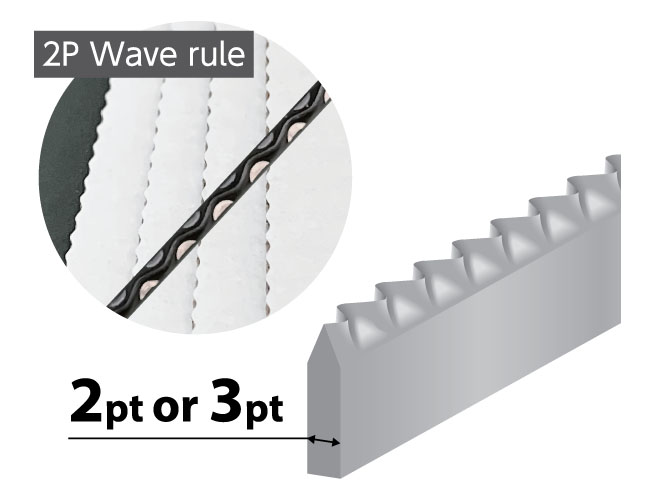

Wave Rule |
 |
Feature: Random wave edges reduce injury on finger from corrugated boards after cutting. |

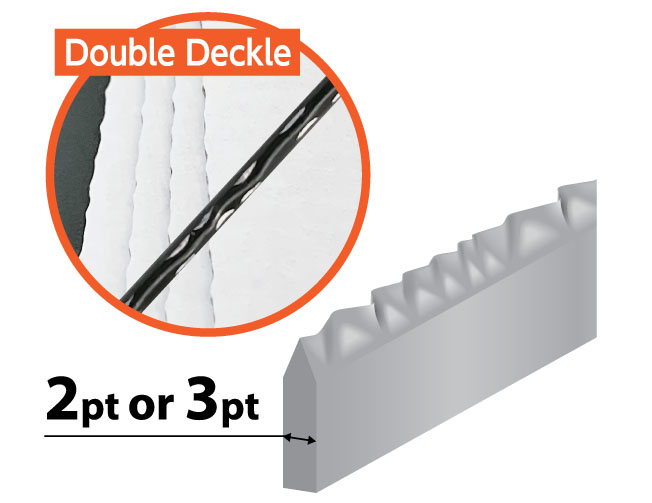

Double Deckle |
 |
Random wave allows smoother and safer cut surface.
|
Cut Crease |
The cutting rule has a ditch of equal space on the cutting edge that allow it to cut and crease at the same time.
It is effective for supporting the folding process and for materials that cannot be folded well with conventional creasing.
| Thickness | Blade Height | Cut | Crease | Crease Height |
2pt (0.71mm) |
23.80mm | 2mm ~ 15mm | 2mm ~ 20mm | ask |
3pt (1.05mm) |
23.80mm | 5mm ~ 15mm | 5mm ~ 15mm | ask |
• The standard length is 1000mm.
• To be able to make the edge hardened products and coil products.
