TrePower

会社名
TrePower
事業内容
Trepower is an innovative technology Italian Company.
Te core business is the development and commercialization of portable line boring and overlay welding machine tools with Brushless motors and touch screen interface.
取扱品目

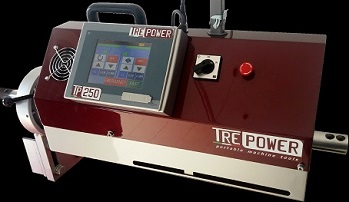

TP250 Series

The TP Serie is composed of portable in line boring, overlay welding and facing machine tools. TrePower portable machine tools have different advantages compared to the traditional portable machine tools currently manufactured.

The main advantages of TrePower portable machine tools are :

- use of brushless motors with integrated electronics, with consequent reduction of the maintenance operations on the motors.

Motors and electronics components are sealed inside the machine and not in the control panel. This reduces the possibility that external agents (for example metals left from machining) could damage the “electronic” components. The motors used in the TrePower portable machine tools mantain their torques (NM) also at high rotation speed. Traditional motors usually have a proportional loss of torque when the rotation speed increases. This causes loss of performances in the traditional motors at high rotation speed.

Unlimited longitudinal stroke through steps of 300 mm without external moving parts. This new internal feeding system allows an unlimited stroke, limited in theory only by the length of the connectable boring bars. The fact that the machine doesn’t require additional space while feeding reduces to the minimum the necessary working space

- Easy of use. The TP serie has been created with an attention to a user-friendly interface. Both in line boring and overlay welding have a manual mode and an automatic mode which calculòate the optimal speeds of both motors basing on the working and machining parameters. All the operations are easily controllable through a light and easy to use 5 inches touch screen display.

During overlay welding the 2 motors (rotation and feed) can be automatically syncronized by the machine or the operator can manually set 2 independent speeds for the 2 motors.

- Possibility to use the machine at 220 volts or 380 volts (three phase). The TP serie in fact has an electronic circuit which can power the machine with mono phase or three phase systems at 50Hz and 60Hz without the needings from the operator to change any settings of the machine avoiding mistakes caused by the operator on setting the right power system.

- Electronic positioning display. The TP serie has an eletronic positioning system already in its standard configuration

BORING BAR mm 40

BORING DIAMETER mm 42 – 250

WELDING DIAMETER mm 30 – 250

LONGITUDINAL STROKE mm UNLIMITED THROUGH STEPS OF 300 MM

ROTATION MOTOR Nm 2,5 (Brushless with integrated electronics)

FEEDING MOTOR Nm 2,5 (Brushless with integrated electronics)

MAX POWER AT BAR KW 15 (300 Rpm)

MAX ROTATION SPEED rpm 145 (220 V) – 400 (380 V)

FEED PER REVOLUTION mm/rev FROM 0 TO 0,7

WEIGHT kgs 25

WORKING DIAMETERS

LINE BORING from ø 42 mm to ø 250 mm

OVERLAY WELDING
Internal from ø 30 mm to ø 250 mm
External on request
住所
via Corrado Alvaro 88060
Italy
電話番号 3391155104
