Industry 4.0 “complete” response

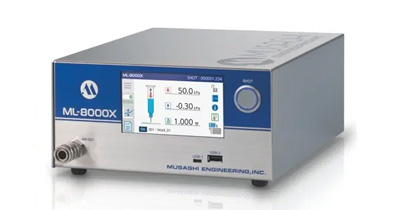

Digital Dispenser Appears!
Feature
●
Improvement of Function
Automatic control of vacuum pressure.
●
Enhancement of production management functions
Log, self-diagnosis, emergency stop mounted.
●
Improved operability

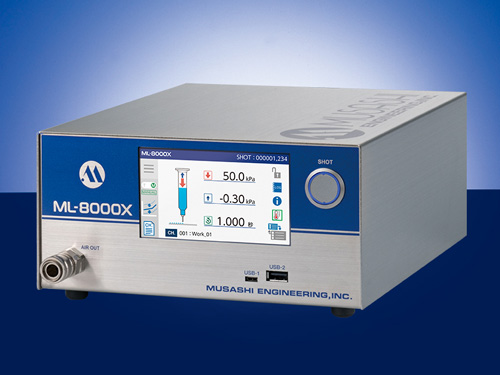

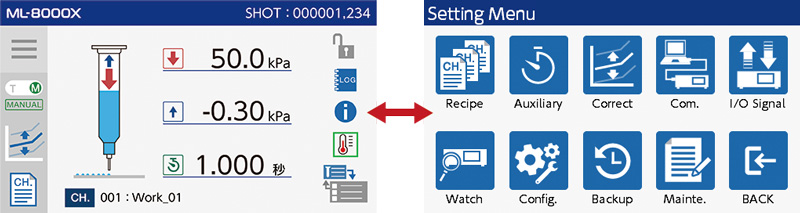

Equipped with a 4.3-inch touch panel.
●
Improved affinity with PC
Equipped with USB port.
●
Network connection support
LAN port installed. Ethernet support.
Applications

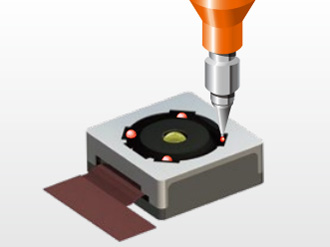

Dispensing UV on Camera Module
Speaker Vibration Membrane Attachment
Dispensing Ag Paste on Touch Panel
Dispensing Ag Paste on optical communication module
Video

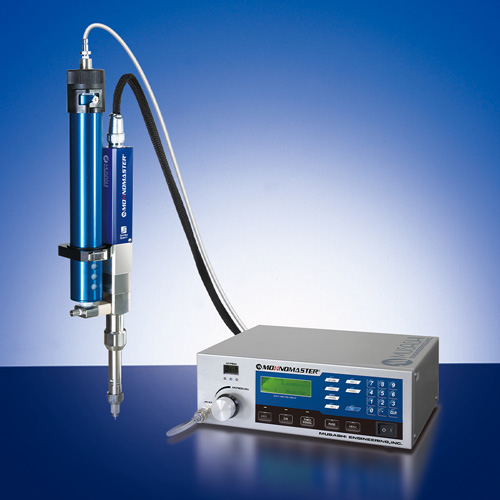

High Performance MOHNO Type Dispenser MOHNOMASTER V2
Optimal solution for gasket Seal (CIPG/FIPG) application
Feature
●
[New Function] Air bubble-less application
●
[Enhancement of Function] Excellent response.
●
It is effective for gasket application with uniform drawing width and high aspect ratio.
●
It is also compatible with two-headed liquid materials.
Applications
FIPG dispensing on engine parts
Liquid gasket dispensing on motor covers
Potting of onboard vehicle substrates

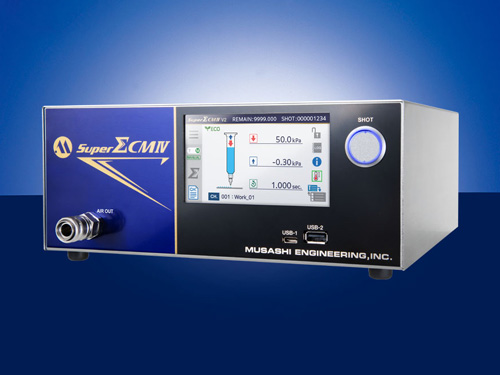

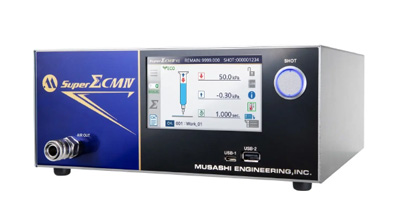

Full Function Digital Control Dispenser SuperΣCMⅣ
Overwhelming No. 1 “World Standard”
Equipped with environmental measures functions ahead of Industry.
Feature
●
Σ® 3 Major Function Updates
Achieving further high precision discharge.
●
Equipped with environmental measures
Reducing syringe residue, power consumption, and air consumption.
●
Equipped with Smart Factory Support
Equipped with log, self-diagnosis, emergency stop.
Quality and production status visualization and troubleshooting analysis through remote operation.
With "Σ Three Major Functions" Improve yield and build smart production lines
1.

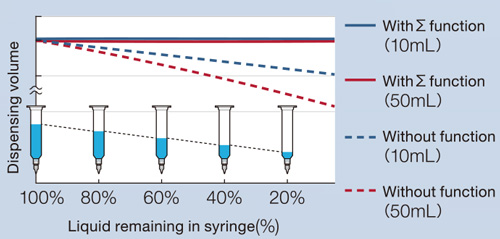

Automatic correction of volume reduction
Compensates for the decrease in dispensing volume due to the effect of the difference in hydraulic head. Stable, high-precision dispensing is achieved through a single syringe.
UP
Improved detection accuracy of the hydraulic head difference, enabling more precise corrections.
2.

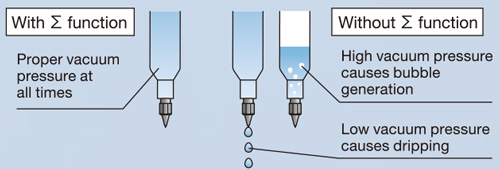

Automatic vacuum correction
Constantly adjusting to the optimal vacuum pressure to prevent dripping and enhance dispensing accuracy stability.
UP
Improved stability and responsiveness of the vacuum pressure, reducing the effect of interval time.
3.

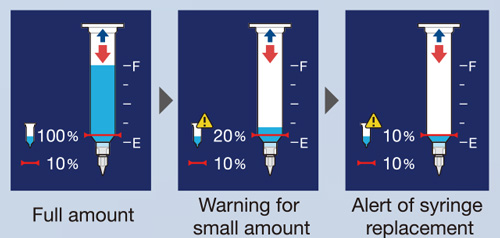

Automatic low liquid remaining alarm
High-precision detection and monitoring of liquid remaining in the syringe.
UP
Improved detection accuracy just before material depletion. Enabling two-stage remaining amount warnings.
Applications
AG paste dispensing for die bonding
Solder paste dispensing to lead frame
UV dispensing for fixing the automotive camera lens
Video

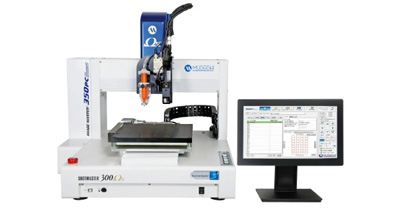

PC Desktop robot 350PCSmart SMΩX with control image recognition function
High-speed, high-precision application is realized even in the world's first strained workpiece.
Feature
●
High precision positioning

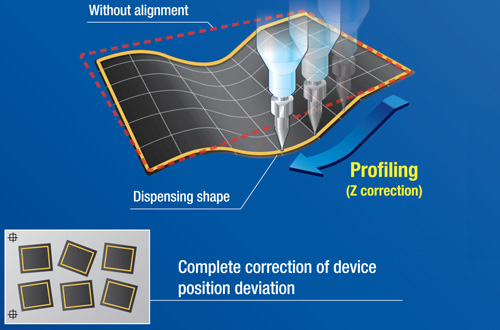

The 3D alignment function supports XYθ correction according to the inclination of the workpiece and Z correction according to the swelling. Ideal for the adhesive process of smartphones.
●
Automatically executes and monitors production cycles
Automatically logs production information into databases. Traceability with production logs.
●
Equipped with newly developed edge detection function
Recognition of alignment accurately even if the shape changes due to lack of alignment target etc.
●
Equipped with the application preview function, display the application image.
●
Save labor and save labor through easy setup.
Video

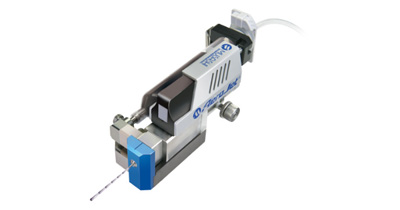

JET dispenser for mid-to high viscosity
High-speed and precision JET
Greatly reduced yield cycle time
It is macroevolution in fastest 333shot/s! We can fly at ultrafast with in middle and high schools viscosity solutions. We largely shorten production baton time.Application that is super minute by original jet mechanism is possible.
Feature
●
Pinpoint shooting
Flexible dispensing from below, side, or oblique directions. Effective for applications on uneven/narrow areas to which the normal nozzle is not accessible.
●
High-speed processing
Dispensing possible without being affected by curves or individual differences in workpieces.
No z-axis movement or gap control is necessary.
Ultra-high-speed processing for the high-precision stable dispensing of minute dots.
●
Cost reduction
Applied amount needed to the points required.
Applications
Underfilling

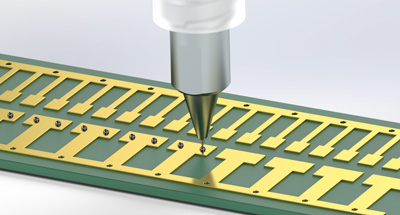

Jetting silver paste to lead frames
Jetting UV glue
Conformal coating for automotive PCB
Adhesion/bonding of various electronic parts
Dotting, lining, coating, and more
Video

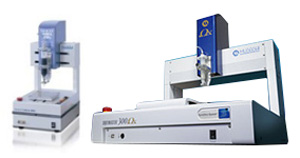

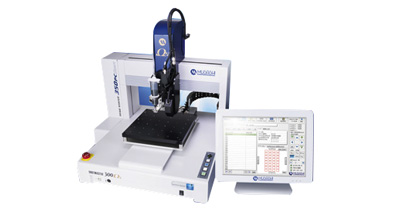

Desktop gate-type robot with PC control image recognition
The fusion of dispensing "Core" technologies

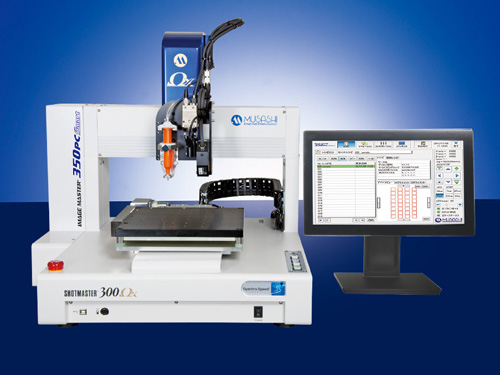

MUSASHI's desktop robot
By 3D alignment function, it is correspondence for XYθ revision to inclination of work and Z revision that we put together to undulate. It is most suitable for adhesive process of smartphone.
Carry out production cycles from work import to export automatically and watch, and, also, is automatic in production information; is logging for database. Traceability correspondence by production log.
Feature
●
Complete 3-D alignment
Automatic correction for individual differences in works and pallet array errors
●
Most suitable for adhesive process of smartphone
●

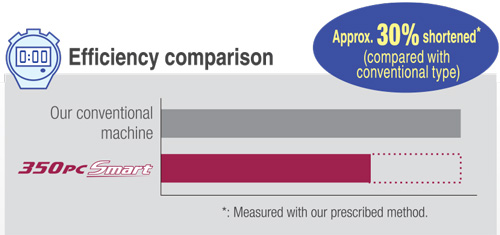

Approx. 30% reduction in operation efficiency, greatly reducing labor time
●
Yield improvement thanks to high-quality dispensing
●
Operability improvement/reduction in programming labor
●
Edge-detection function
Position of works can be adjusted using image processing in a broader range of conditions, including works that could not be detected previously.
●
SynchroSpeedTM function
Achieve a constant drawing width that is independent of robot speed. High-quality dispensing is implemented without the need for complicated adjustments.
Video
Other Products
SHOTMASTER®/ SHOTmini® ΩX/SX
Desktop type dispensing robot
SHOTmini 100s
Ultimately compact desktop robot
CROSS MASTER SX series®
Orthogonality type frequent use robot for in-line
IMAGE MASTER®
350PC Smart XMΩX
PC control image recognition function orthogonality model robot with
