Nano Seimitsu world class sorting machines / visual inspection!
Also manufacture and sales of shafts and fastener parts as well!
World-class automatic sorting machines at reasonable prices
Sorting capacity from 300 to 800 pieces per minute!
|
 |

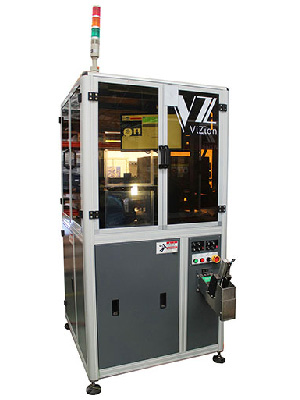

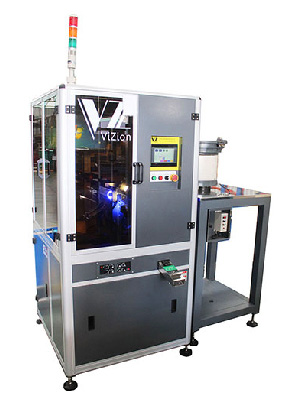

VIZION is one of the leading manufacturers of sorting machines in Taiwan. Equipped with four CCD cameras, the machine is capable of detecting dimensions, abnormal shapes, and contamination at a speed of 300 to 800 pieces per minute.
► Items and functions that can be sorted in VIZION |
► Product Lineup |
► KEYENCE Automatic sorting machine with laser |
|
The "IM" is the well-known KEYENCE image dimensional measuring instrument that you just put down and press. We have developed a standard machine that can sort all items at high speed.
|
|
Target Products |
Cutting parts and other products with dimensional tolerance range of about 10 microns |
|
Field of view |
65mm (Target work size) |
|
Measuring point |
Automatic determination of up to 100 locations in as little as 0.1 second |
|
Minimum display unit |
0.001 mm (1 micron) |
|
Repeatability |
+/- 1 micron or less |
► Case Studies |
Straight shaft sorting |
|
SUS304 φ 1.6 x 44.0mm (+/-0.2mm) straight shaft pins After shafts are fed from the parts feeder to the glass table, the outer diameter + length are automatically sorted by CCD camera image inspection.
|
|
Use |
High-speed sorting of straight shaft pins |
|
Cycle time |
90 pcs /min |
|
Output |
Approx. 70,000 bottles/day (1 shift) |
Covers inspection of dimensions, deformation, mix, and appearance in one machine High-speed automatic sorter with 8 cameras |
 |
UAZNC, a Chinese manufacturer of sorting machines, has been following the lead of Taiwan's leading manufacturers in the field of sorting machines with great vigor and is now overtaking them in terms of production volume and technology.

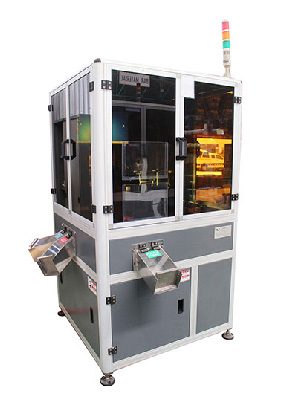

The standard inspection machine of a Taiwanese manufacturer had the highest specification of 4 CCD cameras, but with 8 CCD cameras, one machine covers not only inspection of dimensions, deformation, and mix, but also visual inspection using 4 CCD cameras with 90-degree division. Sorting speed is maintained at 300 pieces/min.
► Items and functions that can be selected at UAZNC |
► Product Lineup |
► Case Studies |
Latest O-ring Sorting Machine |
|
Products |
O-ring |
|
Size |
Outer diameter: 5-65mm Thickness: 1.0-6.0mm |
|
Cycle time |
120-1,000 pcs /min |
Electric Parts Sorting |
|
Products |
Electric Parts (resistor, sensor, fuse, etc.) |
|
Size |
1.0ｘ1.0mm |
|
Cycle time |
1,000-10,000 pcs /min |
CCM x NANO SEIMITSU
|
Labor cost increase is recent serious problem, and the trend towards automation of inspection processes is accelerating in the Thai manufacturing industry. However, we often hear of cases where the expected effects and equipment performance are not satisfied due to difficult set-up, lack of technical understanding and employee training.
The sorting machine series from CCM, a leading Taiwanese AOI maker, solves such problems. The easy-use, operability and excellent user interface (UI) design are their strong point.
TFCT x NANO SEIMITSU |
Electric Parts Sorting |
|
Products |
Electric Parts (resistor, sensor, fuse, etc.) |
|
Size |
0.2ｘ0.4mm |
|
Cycle time |
10,000 pcs /min |
After-sales maintenance by Nano Precision |
● Technical services and maintenance by our staff who have completed manufacturer training
● Remote maintenance and software updates from Taiwan (VIZION) / China (UAZNC)
● Glass table and other spare parts
● Supplies can be ordered from various countries (from Taiwan: 2 to 3 days / from China: 3 to 5 days)
★Click here for a quote and inquiries about automatic sorting machines★
Interested in our high-speed automatic sorting machines or sorting services?
Please feel free to contact us.
