Digital C&R Caliper Gauge CR1525/CR0508

TOEI INDUSTRIAL CO., LTD.

Digital gauge for a 45 degree chamfer offset, corner radius corner or cylinder

■ Feature

Digital reading output accurate measurement results.

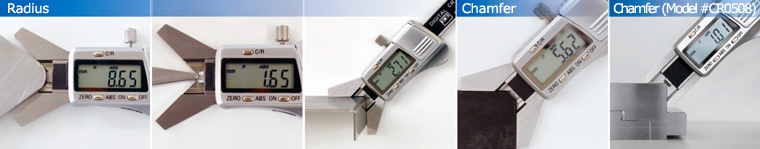

Measure a small 45 degree chamfer offset, corner radius, or cylinder.
Toggle key function between chamfer and radius measurement.
Absolute and relative measurement functions. Zero setting function.
Setting master pin gauge for calibration is included.

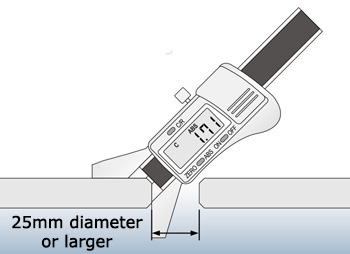

Hole edge measurement

A hole diameter must be 25mm or larger, otherwise the instrument does not reach to the target edge.
Smaller hole results in larger measurement errors because of V-opening thickness (6mm).
Digital C caliper gives better results for such situation.

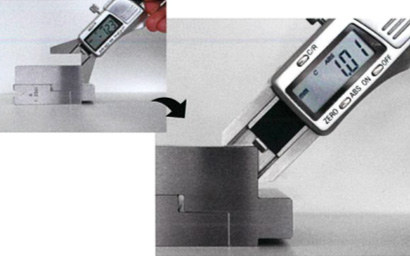

Model #CR0508 is suitable for
small objects or steps.

■ Details

CR1525

Model	CR1525
Measurement	45° chamfer offset on a square corner, corner radius
Range	Chamfer angle of 45 degree C0.01 - C15.00 (mm) Radius on a square corner R0.01 - R25.00 (mm) Circulator or radius on a corner of 90 degree and under R0.06 - R25.00 (mm)
Resolution	C=0.01　R=0.01　(mm)
Accuracy	C=±0.05　R=±0.08　(mm)
Material	Stainless steel（420）
Size	L130mm×W49mm, V opening=6mm thick Probe=3mm thick
Battery	3V lithium coin battery (CR2032) 1 piece
Battery life	1000 hours
Accesory	Setting masters pin gauge 20 diameter

CR0508 　 NEW

Model	CR0508
Measurement	45° chamfer offset on a square corner, corner radius
Range	Chamfer angle of 45 degree C0.01 - C15.00 (mm) Radius on a square corner R0.01 - R8.00 (mm) Circulator or radius on a corner of 90 degree and under R0.06 - R8.00 (mm)
Resolution	C=0.01　R=0.01　(mm)
Accuracy	C=±0.05　R=±0.08　(mm)
Material	Stainless steel（420）
Size	L136mm×W25mm, V opening=6mm thick Probe=3mm thick
Battery	3V lithium coin battery (CR2032) 1 piece
Battery life	1000 hours
Accesory	Setting masters pin gauge 20 diameter
