High Speed Precision Cutting Machine

Manual-operation Mass-production Cutter

► FINE CUT N-7　(General-purpose type / Special-purpose type for pins)

A cutting machine with a rack-type lever that uses the table travel cutting method and which provides easy precision cutting of bars of a diameter of up to Φ30mm.

The dedicated air vise (option) provides superior productivity and operability in the mass-production of consistent size materials.

Characteristics

1. High power with 1.5kW spindle motor; cuts up to 30mm.
   bars precisely and at high speed.
2. Equipped with a cut meter that displays the cutting load.
   The cut meter aids in adjusting the cutting amount.
3. Equipped with vernier scale. Allows the position of the material to be fine-adjusted easily.

General-purpose type vise

Double clamp system that reduces burrs and which is provided with a 3mm-depth cutting wheel passage. Effective cutting length: 3-150mm Equipped with a 150mm vernier scale on the right-hand side.

Special-purpose type vise for pins

Designed exclusively for the extruding pins of die. Cut measurements available from 50mm to 300mm and equipped with a 300mm vernier scale on the left-hand side.

Vernier scale

※General-purpose type includes 150mm scale as standard equipment (optional specifications: 300mm and 500mm)
※Special-purpose type for pins includes 300mm scale as standard equipment (optional specification: 500mm)

A low voltage protection switch with a thermal feature is adopted

Working with the cutting operation of a lever the vise automatically clamps and unclamps pieces of work using air pressure. Very effective in mass-production cutting as it eliminates the necessity of holding pieces of work with your hands.

Standard Specifications

Required floor space

Bundle Cutting

Place fine materials such as injection needles or materials to be cut in a thermal shrinking tube, heat the tube to shrink and thus bundle the materials, and then cut them in one go.

※Please use an industrial dryer or boiling water for the heating process.
※Please contact us for more detailed product information on the tubes.

All-round Compact Cutting Machine

► FINE CUT SS-33　(General-purpose type / Special-purpose type for pins)

Characteristics

1. Strong 1HP spindle motor enables use of a φ205mm cutting wheel.
2. New coding method that more effectively cools down the cutting wheel at its minimum diameter.
3. Wide table that supports a variety of operations.
4. Equipped with machine stand with casters.
5. Vernier scales: 150mm, 300mm and 500mm (optional specifications for general-purpose type).
6. Easy exchange of cutting wheel via designated space on the table.


Required floor space

► FINE CUT SS-31　(General-purpose type / Special-purpose type for pins)

Characteristics

1. Work table travel via rail.
2. No restriction of installation location as it utillizes a 100V power source.
3. Wide table that supports a wide variety of operations.
4. Supports up to φ160mm NASTON.
5. Vernier scales: 150mm, 300mm and 500mm (optional specifications for general-purpose type).
6. Easy exchange of cutting wheel via designated space on the table.


Required floor space

General-purpose type vise

Double clamp system that reduces burrs and is provided with a 3mm-depth cutting wheel passage. Suits the cutting of small pieces of work and is equipped with a scaled 100mm measurement stopper on the right-hand side.

Special-purpose type vise for pins

Exclusively designed to cut the extruding pins of die. Equipped with a 300mm vemier scale on the left-hand side, measured cutting of a size of between 50mm and 300mm supported. Vernier scale 500mm (optinal specification).

Vernier scale

Makes finely adjusting the position of the measuring stopper easily.
※Optional specification for general-purpose type (optional specifications: 150mm, 300mm, and 500mm) ※300mm comes with special-purpose type for pins (optional specification: 500mm)

Space to Exchange Cutting Wheel

A space to exchange the cutting wheel is provided on the table, thus realizing safe and quick exchanges of the cutting wheel without having to lift the table.

Spindle Stopper for Exchanging Cutting Wheel

Spindle stopper provided in front of the belt cover on the right-hand side. The spindle can be locked without a special jig before exchanging the cutting wheel.

Face Grinder

► FINE LIMITER LM-P LM-O

Face grinder for adjusting the length of the extruding pins of die.


Characteristics

1. Cutting feeder scale enables cutting during measurements via a dial gauge.
2. Special-purpose segment grinding stones are free from clogging or burning, even in the case of the dry type.

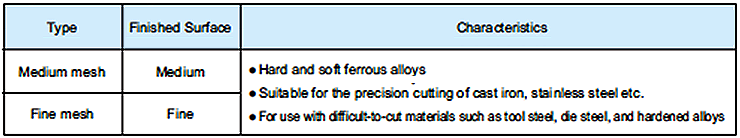

Segment Grinding Stone

​

​​​

Wet/Dry-type Manual Cutting Machine

► FINE CUT Birdie II

Vise section

Characteristics

1. Both wet-type and dry-type supported, and a wide variety of cutting wheels can be used.
2. Suits the cutting of all types of materials such as Cemented carbide, ceramics, and glass.
3. Machine stand with casters (600mm height)(optional accessory).
4. Surface rotary vise for exclusive use with the Birdie II : angled cutting enabled by rotating the material clockwise using the rotary table in 1-degree graduations (optional accessory).

Standard Specifications

Dry-type Compact Cutting Machine

► FINE CUT S-5 (Small multipurpose NASTON GOLD "MM-1" but very effective!)

Characteristics

1. Excellent usability with functional compact/light body.
2. Although dry-type use only practically free of burrs/burns and supports the precision cutting of a wide range of materials from noble metals through to stainless steel and tungsten materials etc.
3. Equipped with NASTON GOLD (TC-1).


Standard Specifications
