Portable Surface Texture Measuring Instrument

New HANDYSURF+, reborn with sophisticated design.
Portable surface texture measuring instrument for global use responding to diverse everyday needs.

Display available in 20 languages!
Multi-language support available worldwide

20 European and Asian languages including English, German and French are provided as standard.
Display language can be easily and quickly changed by menu options.

Language selection screen
(Left : When selecting Japanese / Right: When selecting English)

High resolution with wide measuring range.
No need to set up measuring range!

The previous HANDYSURF required setting of a narrow measuring range when measuring with a high resolution, but HANDYSURF+ has evolved!
The instrument has the Z direction measuring range of 370 μm, which is the widest in class, and achieved a resolution as high as 0.0007 μm over the entire range.

Select from 3 HANDYSURF+ driver units, according to workpiece and measurement location

35 (Standard type)

The standard-type measurable with different attitudes including horizontal, inclined, vertical and ceiling surfaces.

40 (Retract type)

Retract-type that reduces damage to the stylus and pickup by raising the pickup while waiting for measurement or at ending.
It can be used as a detector incorporated into an automatic machine.

45 (transverse trace-type)

The transverse trace-type where the pickup moves sideways. Narrow areas, such as crankshaft pins and journals, that were difficult to measure before can now be measured.

The handy drive unit can be used not only when stored in the amplification instruction unit*, but also can be used away from the amplification indicator by connecting with the included extension cable.

*HANDYSURF 45 cannot be stored.

Superior Operability

2.4 inch color LCD has significantly improved the visibility.
Moreover, 6 buttons and newly developed UI have achieved simple and intuitive operations.

Home screen

Menu screen

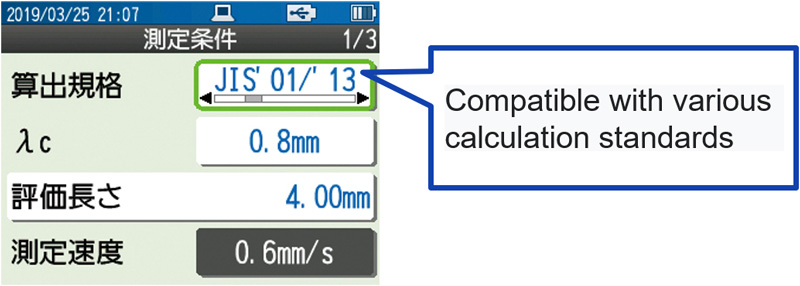

Measurement condition setting display

Multiple analysis capabilities

Graphic representation of measurement results enables their on-site verification with parameter and waveform. Moreover, despite being a portable instrument, it is capable of a variety of analyses including analyses of BAC, ADC, peak count and motifs. By setting the conditions in advance, OK/NG judgment can be performed automatically.

Surface roughness (Ra)

Enlarged display of parameter values
(The e number of parameters displayed on one page can be selected from 1,2, or 4.)

Pass/Fail judgment of measurement results

Load curve analysis

Amplitude distribution curve analysis

Waviness motif analysis
(When selecting CNOMO standard)

Full range of standard accessories designed for ease of use

●Carrying case for HANDYSURF⁺

HANDYSURF⁺ comes with a carrying case for convenient transportation and storage. Standard accessories such as the amplification indicator, drive unit, pickup, various cables and calibration stand can be stored together.

①HANDYSURF+ Carrying case
②Calibration stand
③CD-ROM
（User’s guide, Inspection report creation program）
④Amplification indicator
⑤Drive unit
⑥Pickup
⑦AC Adaptor
⑧Drive unit extension cable
⑨ USB Cable（1m）
　*Can be charged at an outlet (combined with an AC adapter) or from a computer
　*Measurement data can be sent to a computer
⑩Standard block
⑪Quick reference
　　Precautions for use etc.
