Sludge Collector

What is NR Sludge Collector ?

If sludge accumulated at the bottom of the coolant tank is left untreated, it not only reduces the effective tank capacity, but can also cause coolant deterioration and unpleasant odors.

In addition, when fine sludge and metal chips mix into the recycled coolant, they may damage the workpiece surface, shorten tool life, clog filters, and cause coolant pump failure.

The NR Sludge Collector is a circulation-type vacuum system that powerfully sucks up settled sludge together with coolant, then returns the cleaned coolant back to the tank.

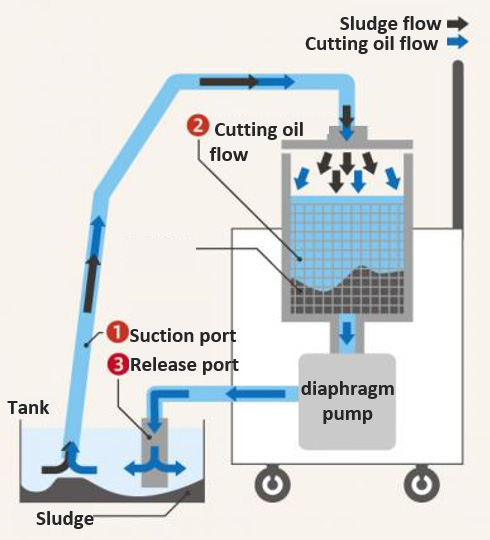

How to use ?

1. Suctions settled sludge and coolant from the tank

2. Collects sludge through the strainer

3. Returns clean coolant to the tank through the return port

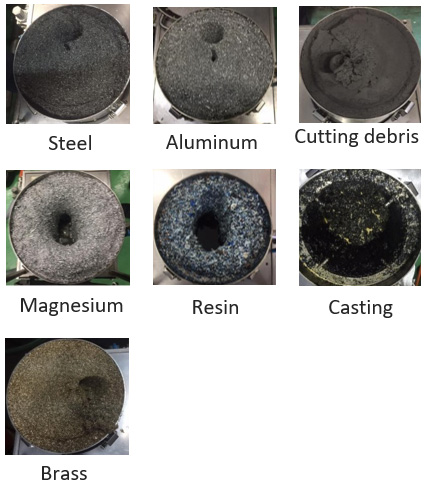

[Sludge Example]

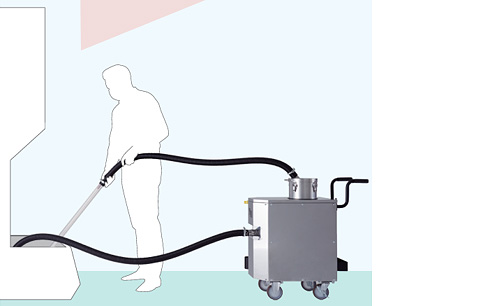

[Usage Examples]

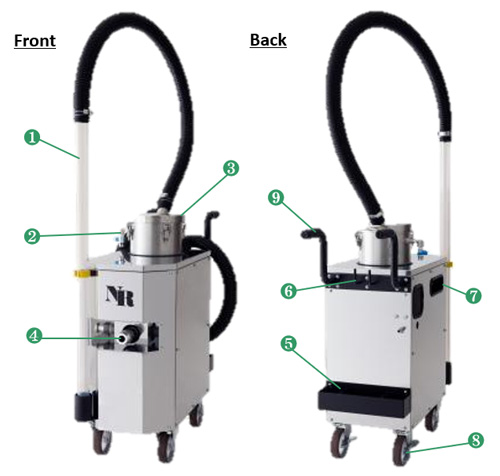

・Compact Design with Casters for Easy Movement
・Space-Saving & Improved Work Efficiency
・Operates Without Stopping the Machine
・For Both Water-Soluble & Oil-Based Coolants

* Please use it on flat space and lock a stopper.

[Video]

Features

Strong suction power by air, Easy to use

・Simple structure design so it is hard to break.
・信頼のMade in Japan で強力吸引

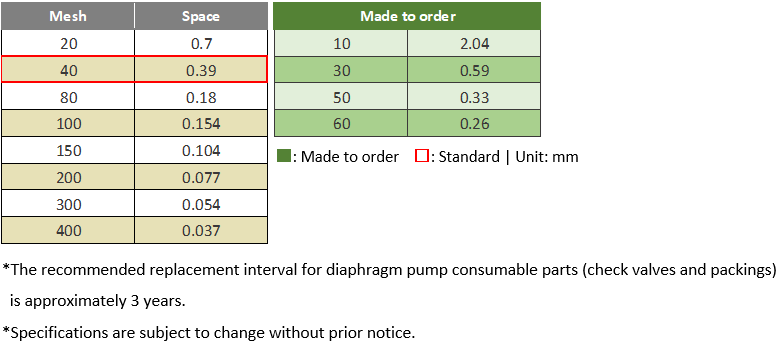

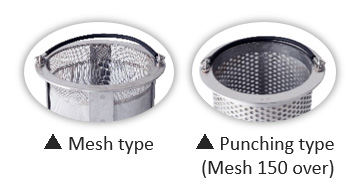

A variety of strainer mesh

・It can be accommodated upon customer’s request.
　* If no request is specified, it will be shipped as 40 mesh.

Saving cost by reducing trouble

・Machine-trouble and processing error reduction through collecting sludge.
・Saving disposal cost and purchase fee due to reducing exchange oil frequency
